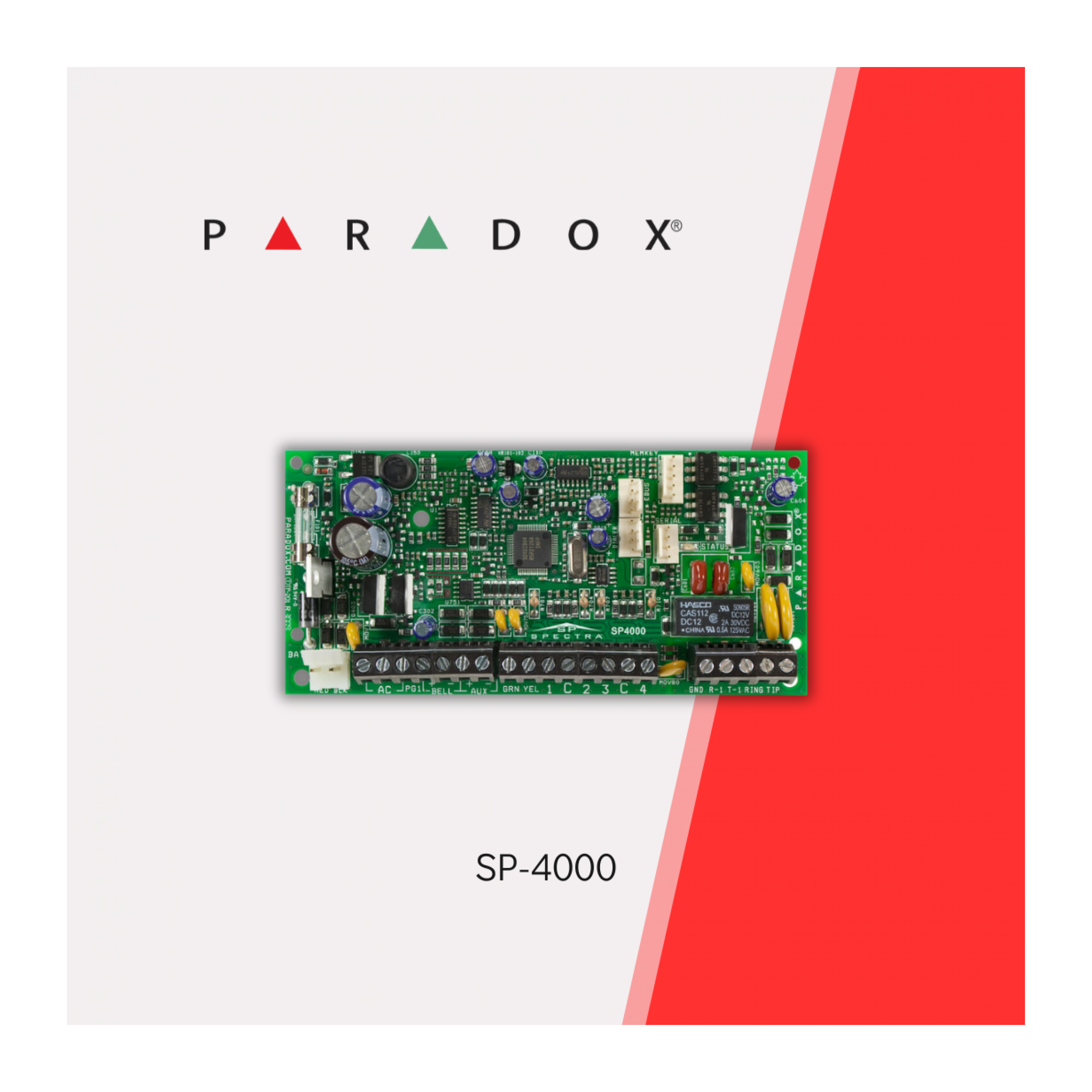

4 ZONE CONTROL PANEL

The SP-4000 control panel offers advanced solutions and communication via BUS, allowing to create module alarm system. With the communication bus the control panel can be expanded through a series of modules, both wired and wireless.

  • FEATURES:

    • Maximum Zones

    • On-board Zones

    • Expansion Zones

    • Keypad Zones

    • Partitions

    • User Codes

    • Siren

    • Alarm Relay

    • Wireless Expansion

    • Patented 2 up to Coupler Dialer Circuit

    • In-Field Firmware Upgradeable

Model: SP4000

Share on :   Share on Facebook Share on Facebook
SPECIFICATIONS SPECIFICATIONS DESCRIPTION DESCRIPTION

Input Voltage
  • 16.5 Vac (50 or 60 Hz) minimum 20 VA (40 VA recommended)

Internal Power Supply
  • 1.1A switching1.1A switching

Battery
  • 12 Vdc, 4 Ah / 7 Ah12 Vdc, 4 Ah / 7 Ah

Battery Charging Current
  • Limited by 1.1A supply current (AUX consumption- no dedicated battery current limit circuit) 350 mA or 700 Ma

Auxiliary Current
  • 450 mA, fuse-less shutdown at 600 mA700 mA maximum, fuse-less shutdown at 1.1A

Bell Output
  • 1A (fuse-less shutdown at 3A)

PGM Output
  • 1 x 100 mA open collector

Operating Temperature
  • -10 to 55 °C (14 to 131 °F)

Metal Box
  • Fits in 20 x 25.5 x 7.6 cm (8 x 10 x 3 in.) and28 x 28 x 7.6 cm (11 x 11 x 3 in.) metal boxes

Dimensions
  • 6.6 x 14 x 2.5 cm (2.5 x 5.5 x 1 in.)
DATA SHEET

SP-4000 DATA SHEET

USER'S GUIDE

SP-4000 USER'S GUIDE
