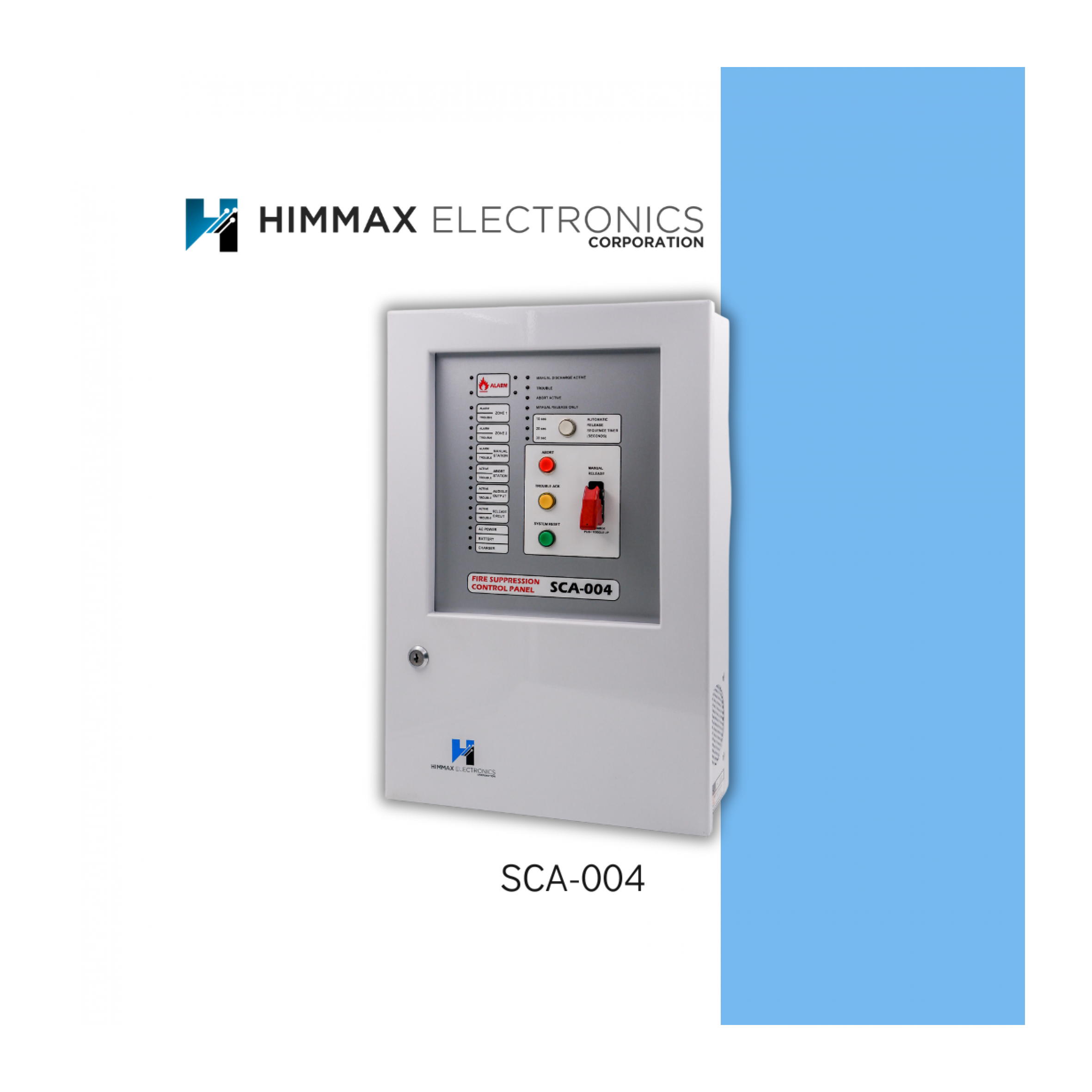

SCA-004isaFireAlarm Control Panel designed specifically for suppression release operation and supervision of the system. It’s equipped with two independent class “B” initiating circuits that are programmed for both single and cross application. The said circuits support 2-wire type smoke detectors, which can be intermixed with thermal detectors. Also, class “B” circuits can accept manual release request, manual abort request and supervision of agent release system. All input circuits permit up to 50 ohms resistance thus allowing extended wiring runs. The suppression panel has supervisory, alarm and trouble status LED indicator circuits. Panel also have zone indicators where the trouble or alarm comes from. Option for setting the time when the extinguishing device is switched on from 10 seconds to 30 seconds, displayed at the panel. SCA-004 is 2 zone panel with 24VDC power supply provided for 120 or 240 VAC. This panel is installer-friendly, simple but reliable board construction and compatible with wide range of detectors and suppression agents.
-
FEATURES::
-
Micro-controller based
-
Abort and Release modes
-

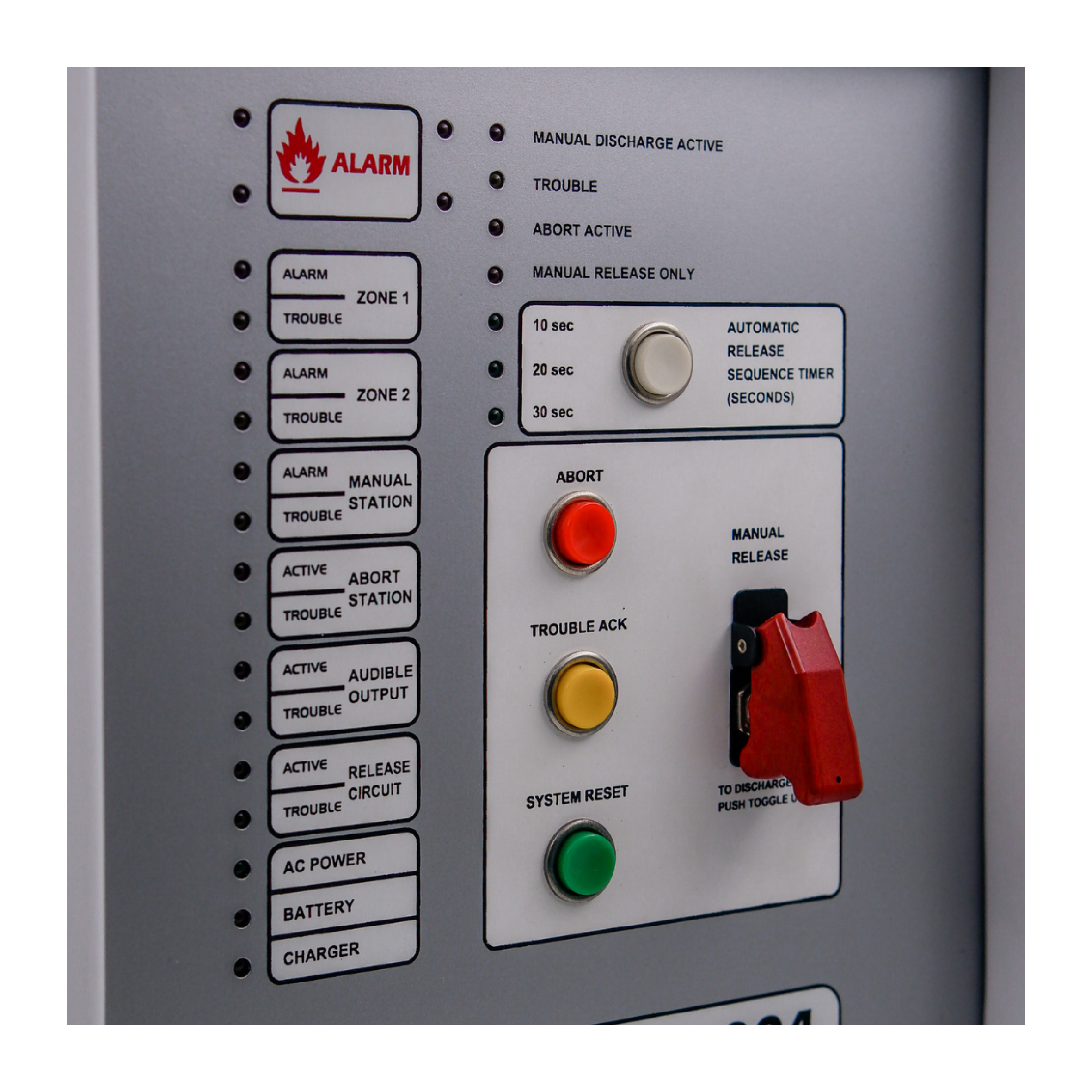

Status and trouble indicating LEDs
-
Programmable alarm relay
-
Single or dual solenoid release
-
Manual trigger release
-
Adjustable delay timer
-
Programmable cross zone operation
-
5-hour trouble resound
-
Supervisory Circuits
-
Alarm circuit protect
-
Model: SCA-004
| SPECIFICATIONS SPECIFICATIONS | DESCRIPTION DESCRIPTION |
|---|---|
|
Input Power |
|
|
Auxiliary Power |
|
|
Audible Output |
|
|
Release Output |
|
|
Input Circuits |
|
|
Relay Output |
|
|
Detector per Unit |
|
|
Delay Time |
|
|
Ambient Temperature |
|
|
Dimensions (mm) |
|
|
Weight |
|
|
Enclosure Finish |
|
