Available in two versions, Loop Isolator only and Isolating Detector Base for Intelligent Detector mounting, the Intelligent Isolators offer superior SLC loop protection. The Intelligent Isolating Bases sense and isolate short-circuit faults associated with Axis AX Series SLC loop wiring. Under normal operation, the SLC loop power and communications are passed through the Isolators. If a short-circuit or an abnormally low line impedance occurs, the isolator senses the drop in voltage and isolates the negative supply of the SLC loop, in the direction of the fault. The short-circuit fault will be indicated on the Axis AX Series Intelligent Fire Alarm Control Panel’s graphical display and on the isolators via an illuminated yellow LED.
-
FEATURES:
-
Patented XPerT Addressing
-
Short-Circuit Isolation
-
Meets NFPA Style 7 Requirements
-
In-Out Terminals for Ease of Wiring
-
Dedicated Terminal for Shielded Cable
-
Low-Profile Design
-
Built-in Short Circuit Yellow LED Indicator
-
3” or 4” Square or Octagonal Electrical Box Mount
-
One-Way-Only” Detector Insertion
-
Base to Detector Locking Mechanism
-

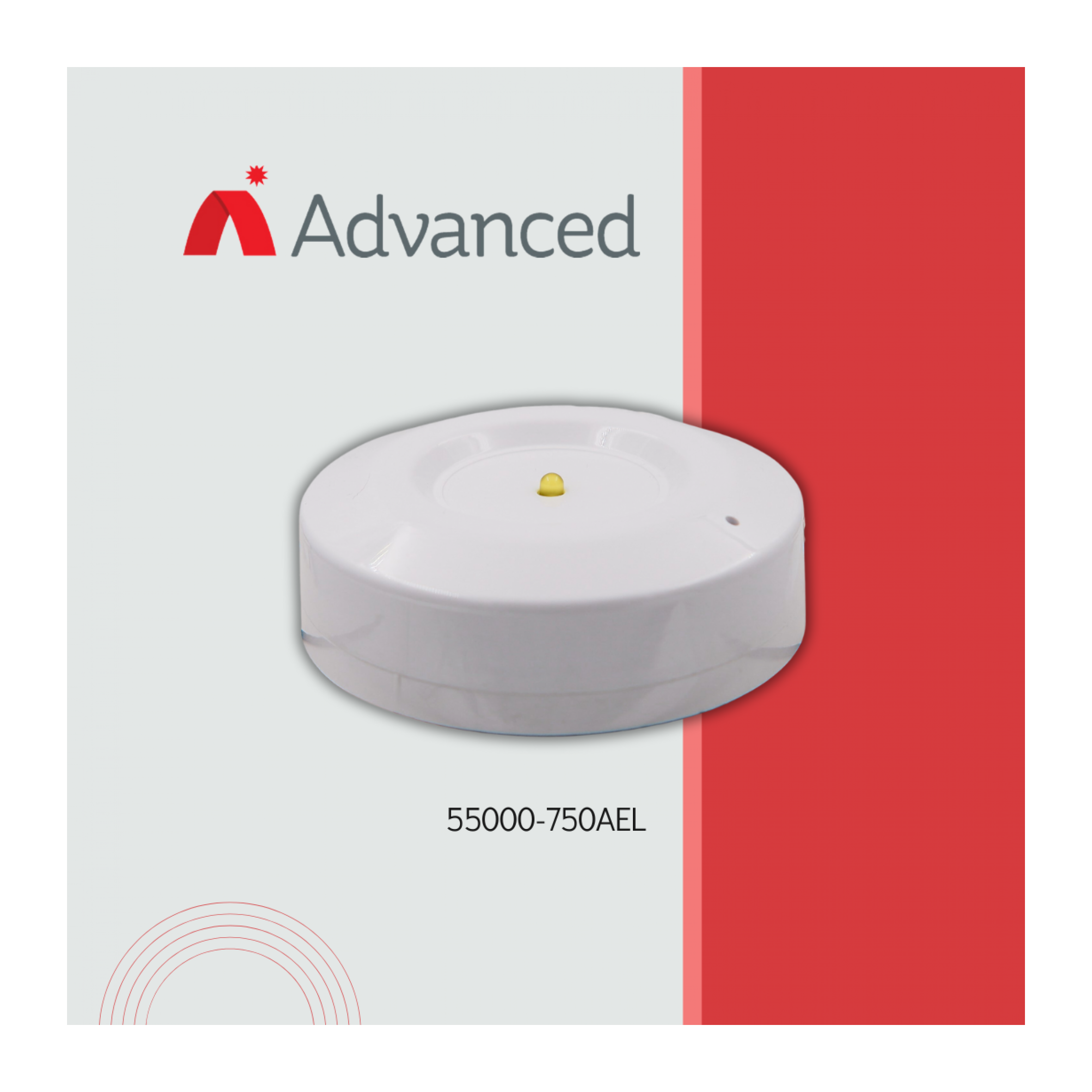

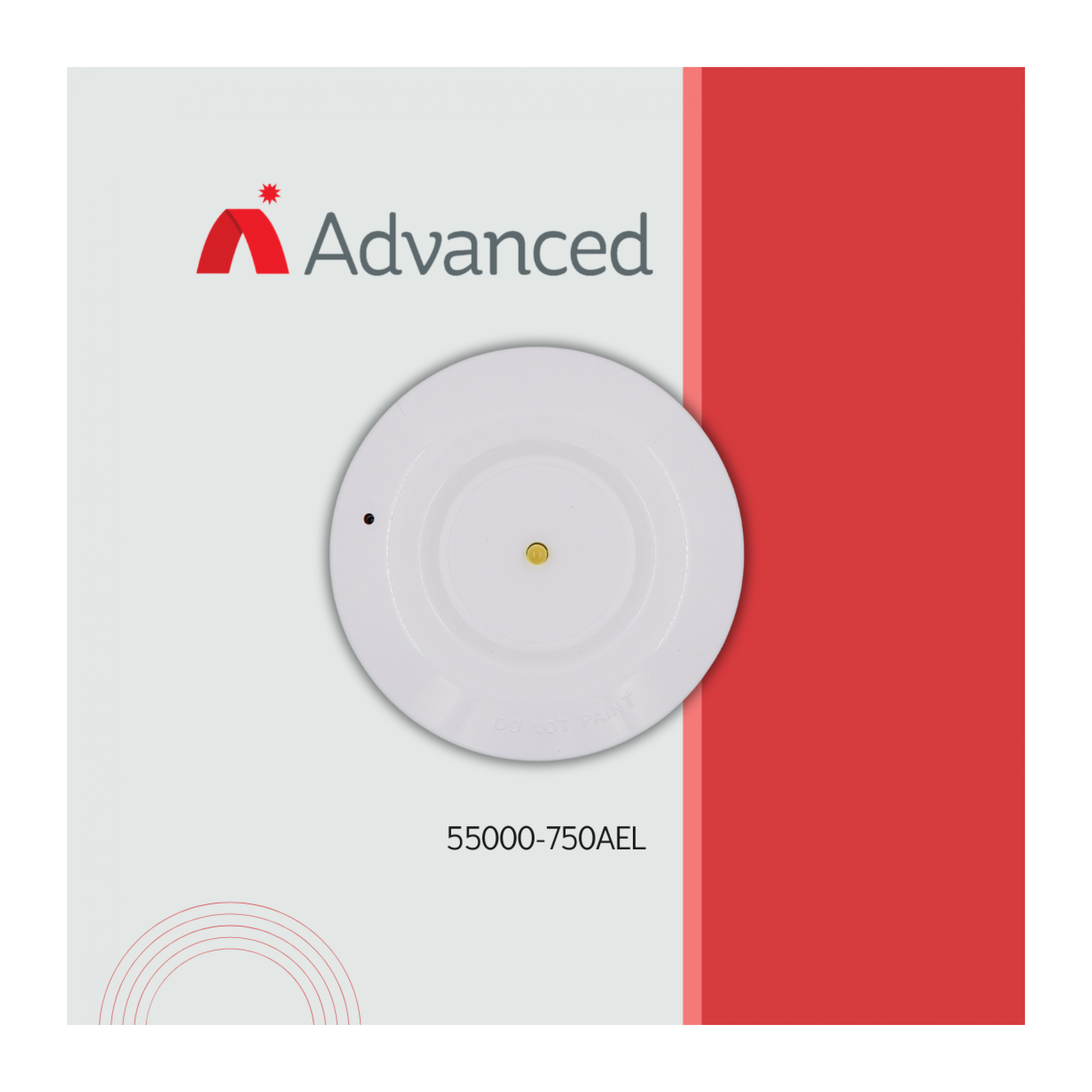

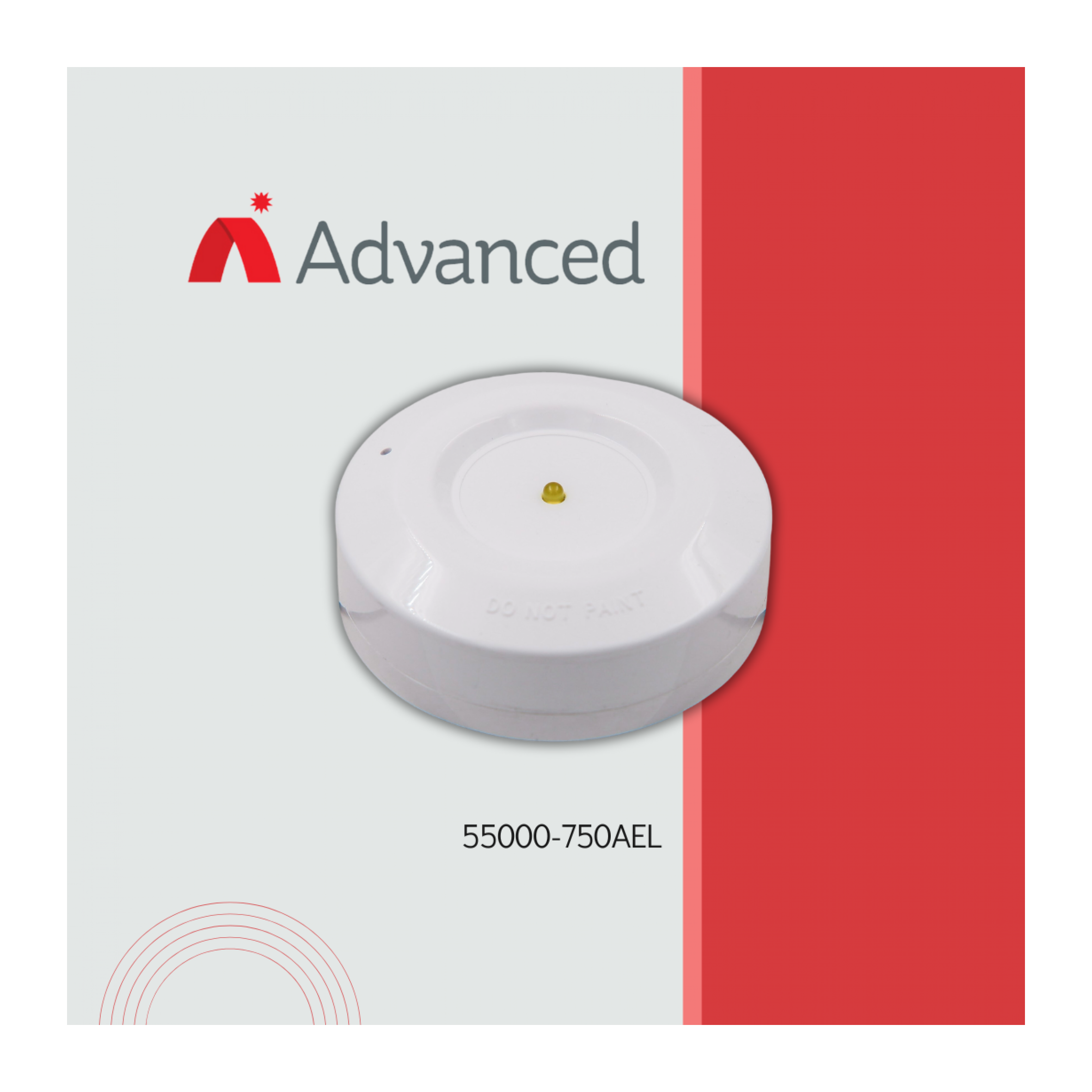

Model: 55000-750AEL
| SPECIFICATIONS SPECIFICATIONS | DESCRIPTION DESCRIPTION |
|---|---|
|
Remote LED Output Current |
|
|
Voltage |
|
|
Environment |
|
|
Operating Temperature |
|
|
Operating Temperature for AX Detector Isolator Base only |
|
|
Humidity |
|
|
Humidity for AX Detector Isolator Base |
|
|
Dimensions |
|
|
Weight |
|
|
Housing |
|
