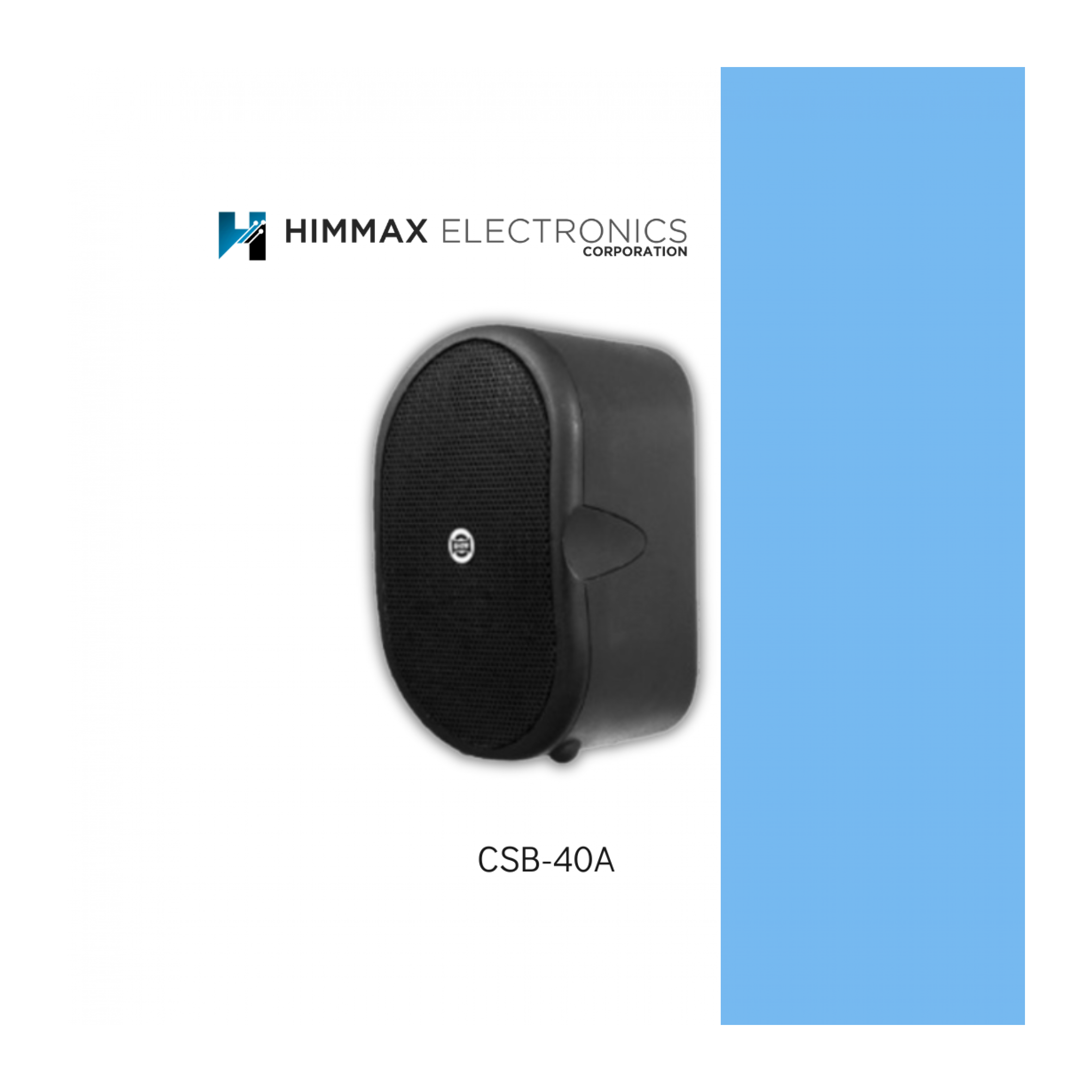

ACTIVE SPEAKER CABINET WITH 40W AMPLIFIER

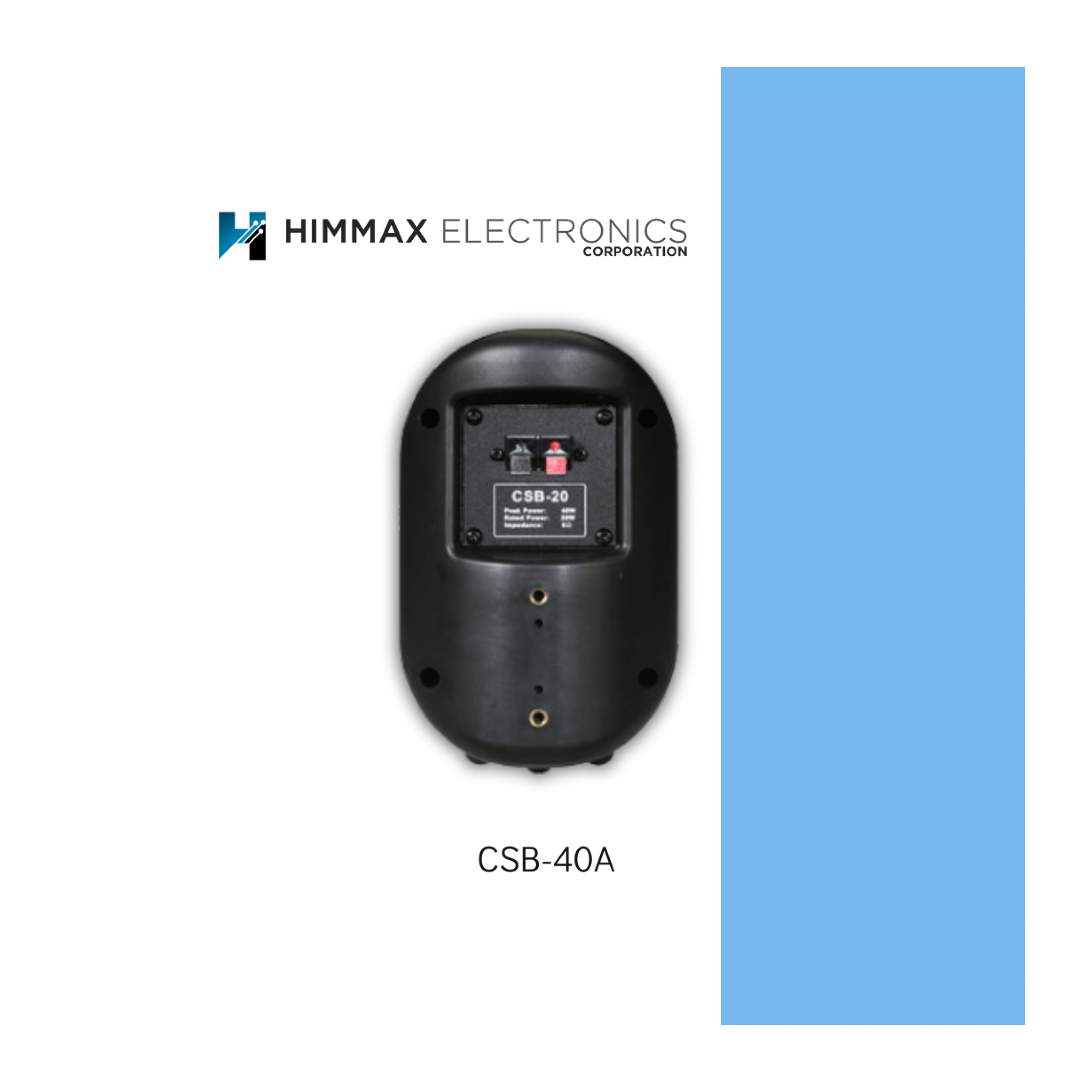

CSB-40A is design and compact speakers dedicated to background music and speech. The range includes passive low impedance, passive with transformer and active cabinets, offering alternative for most installations. They are equipped with a 3” or 4” full range transducer. Their output delivers 20W, 30W, or 40W depending on the models. The passive speakers feature grip connector terminals at the back. An impedance selector is available for 70V/100V versions.

  • FEATURES:
    • The signal being transformed in mono before amplification

    • The inputs of the active models use stereo RCA connectors with volume control

    • Passive with transformer

    • Passive low impedance

Model: CSB-40A


Share on :   Share on Facebook Share on Facebook
SPECIFICATIONS SPECIFICATIONS DESCRIPTION DESCRIPTION

Speaker Type

  • Active

Transducer

  • 1x4” full range speaker

Frequency Response

  • 88Hz~18kHz

Power Rating

  • 40W

External Controls

  • Volume control/Power Switch

Dimensions (W X D X H)

  • 136X 140X 206 mm 5.35”x 5.51”x 8.11”

Weight

  • 2.0~2.4kg (4.4~5.3 lbs.)
DATA SHEET

CSB-40A DATA SHEET
