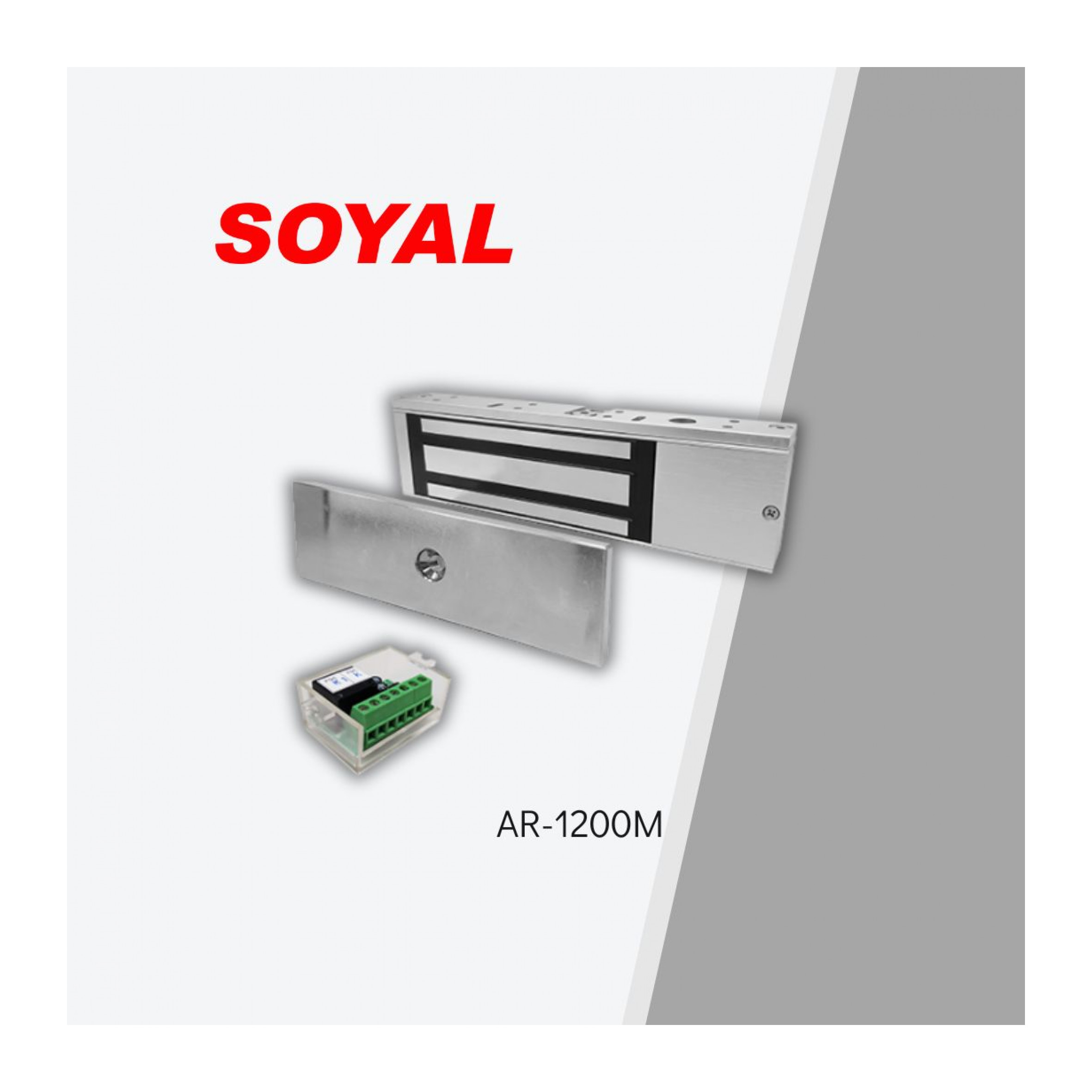

INDOOR ELECTRONIC MAGNETIC LOCK 1200LBS

The magnetic lock has no mechanical structure, high reliability, and reinforced aluminum alloy shell. The adsorption board has a special anti-residual magnetism design, and a variety of optional installation auxiliary racks are suitable for all door types. Suitable for inner sliding door and outer sliding door

  • FEATURES:
    • Provides 4 sets of delay time and easily upgrade standard magnetic lock to magnetic

    • Lock with delay time , which are suitable for all series of magnetic lock

    • Delay time setting method: set by DIP switch

    • Delay time: 0.1, 3, 6, 9 seconds

Model: AR-1200M


Share on :   Share on Facebook Share on Facebook
SPECIFICATIONS SPECIFICATIONS DESCRIPTION DESCRIPTION

Operating Voltage

  • 12/VDC/24VDC

Current Draw

  • 500mA/12VDC250mA/24VDC

Selenoid Test

  • Over 500,000 times

Operating Temperature

  • 10°C ~ +55°C

Humidity

  • 0~95% non-condensing

Dimension: Magnet

  • 251(L) x 47(W) x 25(H)

Armature Plate

  • 185(L) x 38(W) x 12(H)

Electronic Magnetic Lock Weight (kg)

  • 1.2kg
