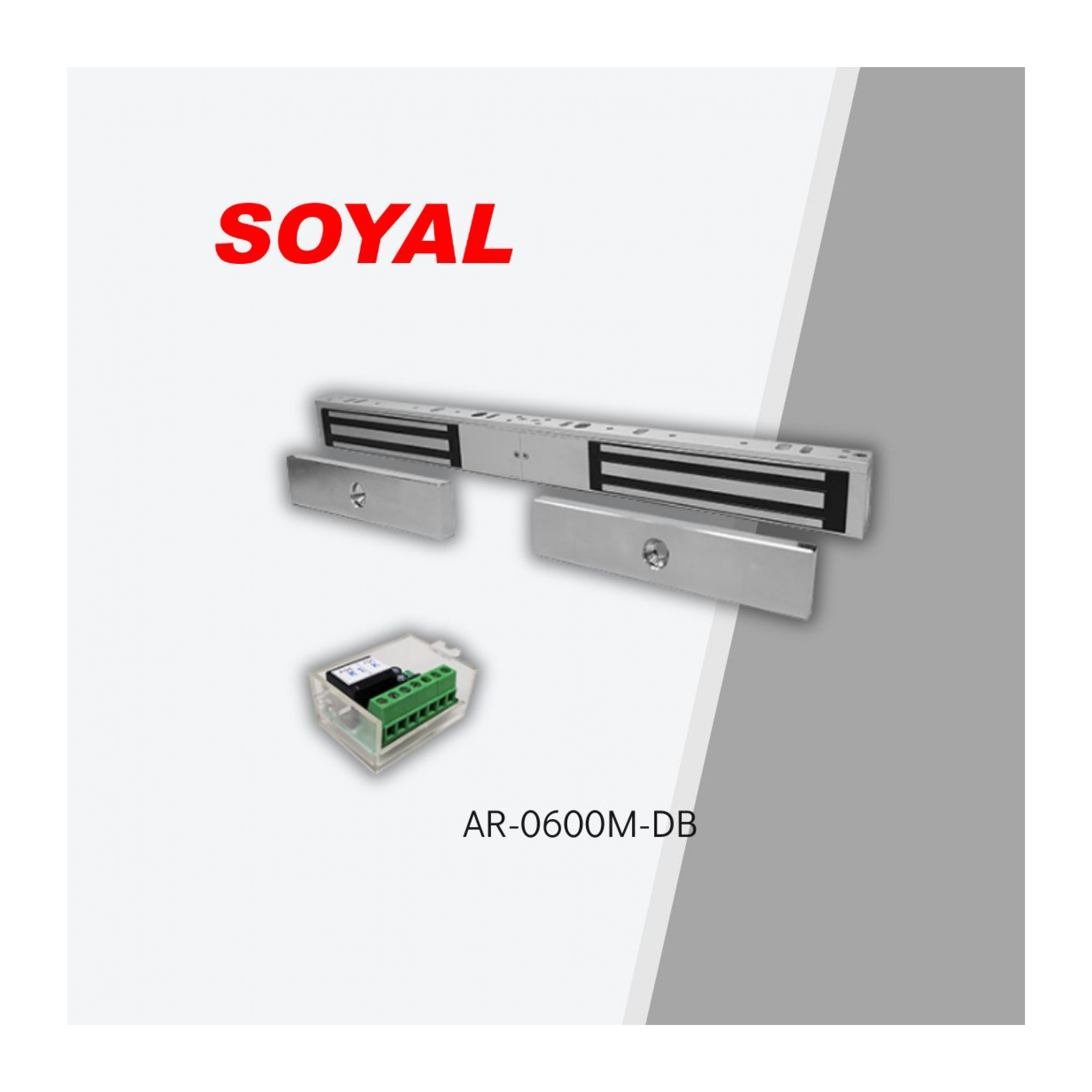

INDOOR ELECTRONIC MAGNETIC LOCK 600LBS

The most unique function of SOYAL control system is that the entire series of products are compatible with an expandable cascade structure. The hardware system can effortlessly add new equipment and scale up the system capacity and Improve system security level without replacing the existing equipment as the needs of the customer growth.

Model: AR-0600M-DB


Share on :   Share on Facebook Share on Facebook
SPECIFICATIONS SPECIFICATIONS DESCRIPTION DESCRIPTION

Operating Voltage

  • 12/VDC/24VDC

Current Draw

  • 500mA/12VDC250mA/24VDC

Selenoid Test

  • Over 500,000 times

Operating Temperature

  • 10°C ~ +55°C

Humidity

  • 0~95% non-condensing

Dimension: Magnet

  • 502(L) x 48(W) x 25(H)

Armature Plate

  • 185(L) x 38(W) x 12(H)* 2units

Electronic Magnetic Lock Weight (kg)

  • 3.1kg
USER'S GUIDE

AR-0600M-DB USER'S GUIDE
